Richmond 1304000069 Features:
- Input Shaft Diameter: 1.125 in.
- Input Shaft Spline Quantity: 26
- Oil Capacity: 1.200 Quarts
- Oil Type: GL-4 80w-90
- Output Shaft Diameter: 1.375 in.
- Output Shaft Spline Quantity: 32
Richmond Transmission Warranty
Richmond Gear 1304000069 Super T-10 4-Speed Transmission, GM 2.64
$1,794.00
Sale price
$1,794.00
Regular price
$1,794.00
Skip to product information

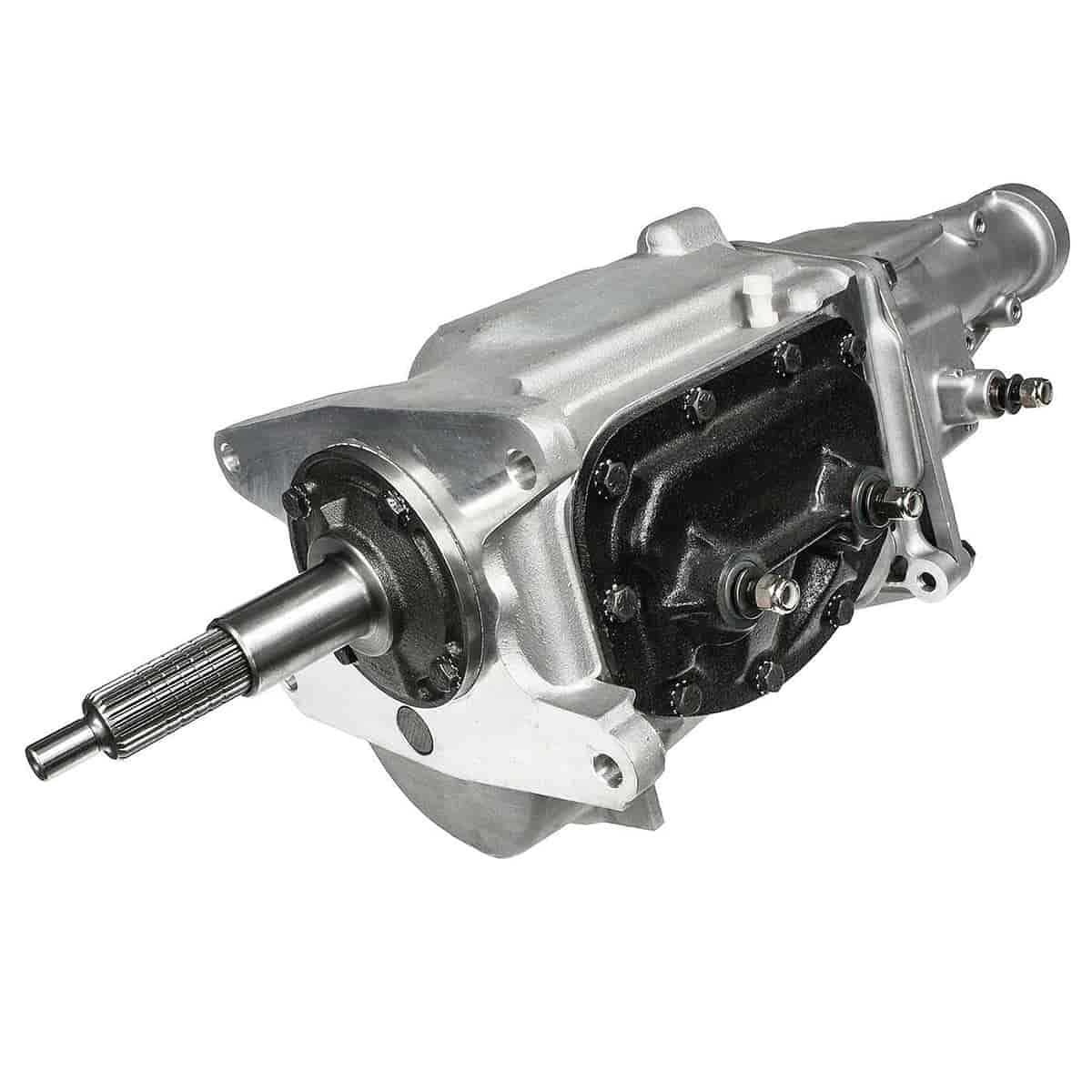

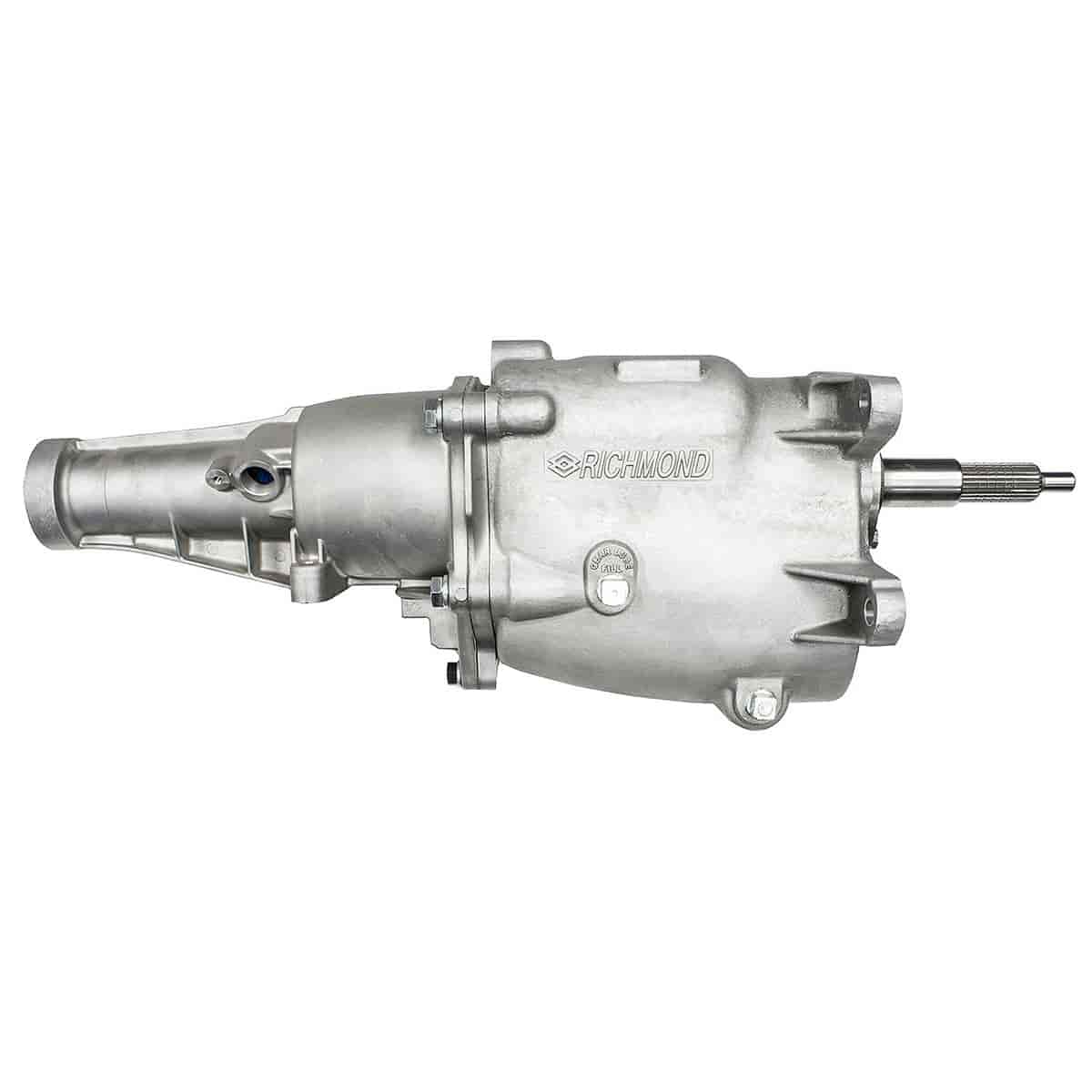

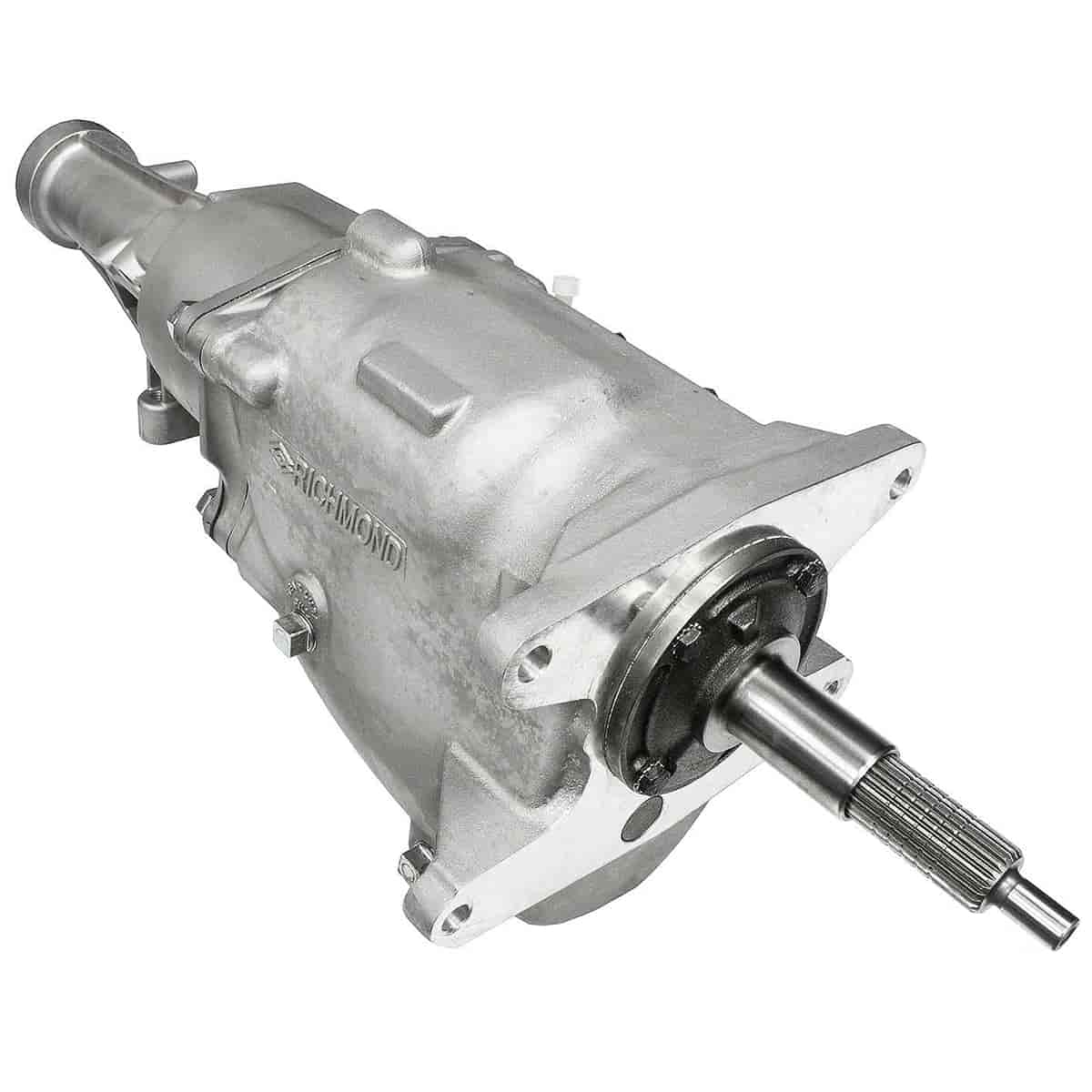

Richmond Gear 1304000069 Super T-10 4-Speed Transmission, GM 2.64
$1,794.00
Sale price
$1,794.00
Regular price
$1,794.00
-
Super T-10
Specifications:
Part TypeManual TransmissionProduct LineRichmond 4-Speed Super T-10 TransmissionsBellhousing IncludedNoFirst Gear Ratio2.64:1Fourth Gear Ratio1.00:1Input Shaft Diameter1.125 in (28.575 mm)Input Spline Quantity26Number of GearsFourOutput Shaft Spline Diameter1.375 in (34.9 mm)Output Shaft Spline Quantity32Package Depth35.00Package Height16.50Package Width16.00Part CategoryPerformance PartsPart FitmentSemi UniversalQuantitySold individuallySecond Gear Ratio1.75:1Shifter IncludedNoShipping Weight82.00Third Gear Ratio1.34:1Trans ModelSuper T-10 4 SpeedVendor Part Number1304000069Yoke IncludedNoYoke StyleSlip OnManual Transmissions Designed for the Demands of Racing
Richmond’s 4-speed, manual-shift Super T-10 transmission is available in a base model known as “the NASCAR standard” or a Plus version built for road course racing. Additionally, Super T-10 Plus Transmissions have a steel input bearing retainer and race brass synchro rings.
